Raw wheels, chrome wheels and accessories ship in 5-7 business days. Powder coated wheels ship in 4-6 weeks. Products ordered from Garage Deals ship in 2-3 business days.
OE (Series 657)
Raw
6 & 8 lugs
(add $35 per wheel)
Custom Powder Coat
Custom Color Disclaimer: Actual colors may vary due to differences in computer settings and display capabilities. We cannot guarantee the color you see accurately portrays the true color of the paint product. Before placing your order, we strongly recommend that you request a sample from Cardinal Paint, Tiger Coatings or Axalta Paint as needed.
price:
Shipping and taxes will be calculated at time of checkout.

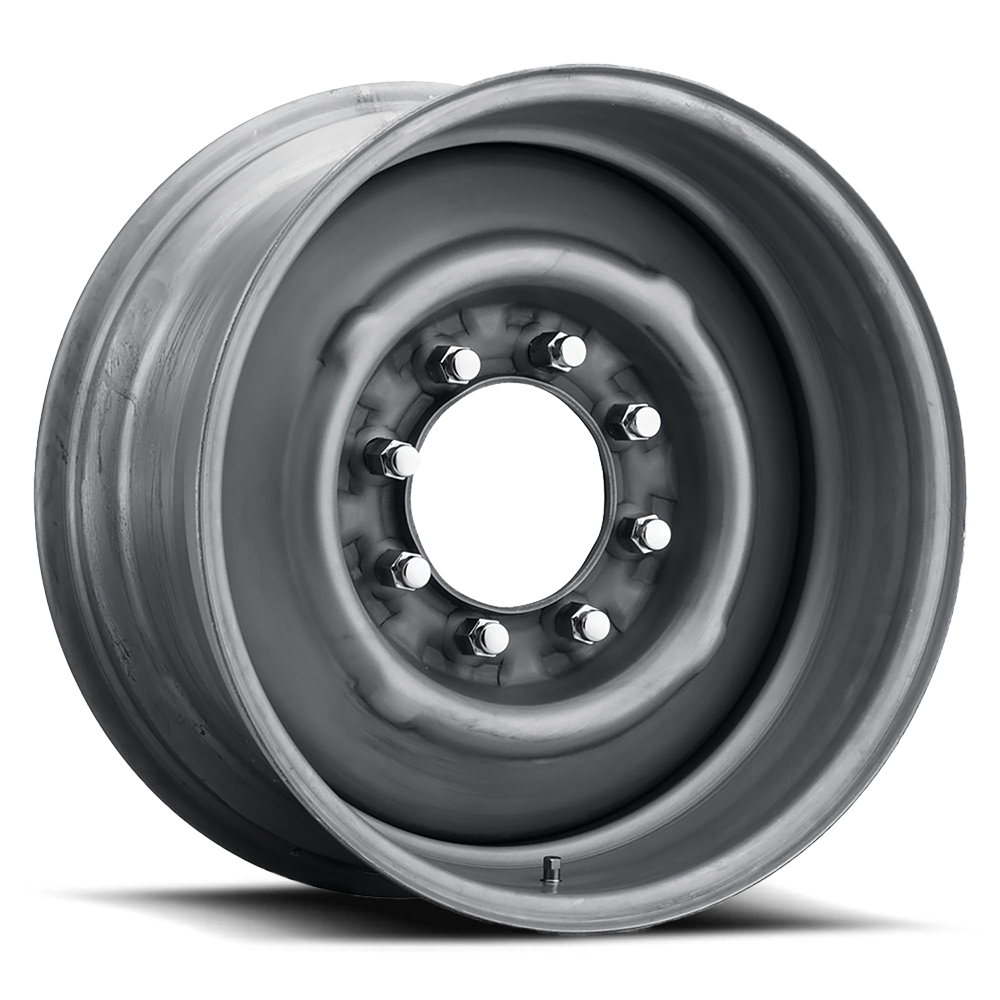

All steel, raw wheel. Outside nubs for caps on 6 & 8-lug wheels measure 11 5/8". Additional 5 & 6-lug options for this wheel are available on our Hot Rod tab. Some wheel backspaces require reverse rim and are noted with an R in the part number. Our 8x170 bolt pattern options are designed to fit Ford Super Duty F-Series, 1999-2004, exclusively. NOTE: 17" 8-lug options do not have vents; all other options include vents. Image is of a REVERSE wheel. Lug nuts not included. Please check proper fitment before mounting.
available in sizes:
16x6, 16x7, 16x8, 16x10, 16x12, 17x7, 17x8, 17x9, 17x10, 17x12
We only ship to the 48 contiguous United States.
_5427.jpg)
-
Finishes
Additional Finishes
Technical Specifications
| Part Number | Size | BP 1 | BP 2 | BP 3 | Offset | Backspacing | Bore | Load | Weight | Finish | Accessories |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 657-7660 | 16x6 | 6x139.7 | 25 | 4.5 | 94 | 2600 | 34 | Raw | View All | ||
| 657-7680 | 16x6 | 8x165.1 | 25 | 4.5 | 123.95 | 2600 | 34 | Raw | View All | ||
| 657-7760 | 16x7 | 6x139.7 | 13 | 4.5 | 94 | 2200 | 34 | Raw | View All | ||
| 657-7780 | 16x7 | 8x165.1 | 13 | 4.5 | 123.95 | 2600 | 35 | Raw | View All | ||
| 657-7860 | 16x8 | 6x139.7 | 19 | 5.25 | 94 | 2200 | 37 | Raw | View All | ||
| 657-7880 | 16x8 | 8x165.1 | 19 | 5.25 | 123.95 | 2600 | 36 | Raw | View All | ||
| 657-7060 | 16x10 | 6x139.7 | -19 | 4.75 | 94 | 2200 | 42 | Raw | View All | ||
| 657-7080 | 16x10 | 8x165.1 | -19 | 4.25 | 123.95 | 2600 | 39 | Raw | View All | ||
| 657-7260 | 16x12 | 6x139.7 | -25 | 5.5 | 94 | 2200 | 45 | Raw | View All | ||
| 657-7280 | 16x12 | 8x165.1 | -25 | 5.5 | 123.95 | 2600 | 40 | Raw | View All |
| Part Number | Size | BP 1 | BP 2 | BP 3 | Offset | Backspacing | Bore | Load | Weight | Finish | Accessories |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 657-8760 | 17x7 | 6x139.7 | 51 | 6 | 108.71 | 1700 | 40 | Raw | View All | ||
| 657-8780 | 17x7 | 8x165.1 | 16 | 4.6 | 123.95 | 2600 | 35 | Raw | View All | ||
| 657-8787 | 17x7 | 8x170 | 16 | 4.625 | 124.97 | 2600 | 40 | Raw | View All | ||
| 657-8860 | 17x8 | 6x139.7 | 25 | 5.5 | 108.71 | 2600 | 40 | Raw | View All | ||
| 657-8860450R | 17x8 | 6x139.7 | 0 | 4.5 | 108.71 | 2600 | 40 | Raw | View All | ||
| 657-8880 | 17x8 | 8x165.1 | 25 | 5.5 | 123.95 | 2600 | 39 | Raw | View All | ||
| 657-8880450R | 17x8 | 8x165.1 | 0 | 4.5 | 123.95 | 2600 | 40 | Raw | View All | ||
| 657-8887 | 17x8 | 8x170 | 25 | 5.5 | 124.97 | 2600 | 40 | Raw | View All | ||
| 657-8887450R | 17x8 | 8x170 | 0 | 4.5 | 124.97 | 2600 | 40 | Raw | View All | ||
| 657-8960 | 17x9 | 6x139.7 | 38 | 6.5 | 108.71 | 2600 | 40 | Raw | View All | ||
| 657-8960350R | 17x9 | 6x139.7 | -38 | -38 | 108.71 | 2600 | 40 | Raw | View All | ||
| 657-8980 | 17x9 | 8x165.1 | 38 | 6.5 | 123.95 | 2600 | 40 | Raw | View All | ||
| 657-8980350R | 17x9 | 8x165.1 | -38 | 3.5 | 123.95 | 2600 | 40 | Raw | View All | ||
| 657-8980575 | 17x9 | 8x165.1 | 19 | 5.75 | 123.95 | 2600 | 40 | Raw | View All | ||
| 657-8987 | 17x9 | 8x170 | 38 | 6.5 | 124.97 | 2600 | 40 | Raw | View All | ||
| 657-8987350R | 17x9 | 8x170 | -38 | 3.5 | 124.97 | 2600 | 40 | Raw | View All | ||
| 657-8987575 | 17x9 | 8x170 | 19 | 5.75 | 124.97 | 2600 | 40 | Raw | View All | ||
| 657-8060550R | 17x10 | 6x139.7 | 0 | 5.5 | 108.71 | 2600 | 42 | Raw | View All | ||
| 657-8080 | 17x10 | 8x165.1 | 25 | 6.5 | 123.95 | 2600 | 42 | Raw | View All | ||
| 657-8080550R | 17x10 | 8x165.1 | 0 | 5.5 | 123.95 | 2600 | 42 | Raw | View All | ||
| 657-8087 | 17x10 | 8x170 | 25 | 6.5 | 124.97 | 2600 | 40 | Raw | View All | ||
| 657-8087550R | 17x10 | 8x170 | 0 | 5.5 | 124.97 | 2600 | 40 | Raw | View All | ||
| 657-8260 | 17x12 | 6x139.7 | 0 | 7.5 | 108.71 | 2600 | 44 | Raw | View All | ||
| 657-8280 | 17x12 | 8x165.1 | 0 | 7.5 | 123.95 | 2600 | 44 | Raw | View All | ||
| 657-8287 | 17x12 | 8x170 | 25 | 7.5 | 124.97 | 2600 | 40 | Raw | View All |
