Raw wheels, chrome wheels and accessories ship in 5-7 business days. Powder coated wheels ship in 4-6 weeks. Products ordered from Garage Deals ship in 2-3 business days.
OE (Series 657)
Raw
5 & 6 lugs
(add $35 per wheel)
Custom Powder Coat
Custom Color Disclaimer: Actual colors may vary due to differences in computer settings and display capabilities. We cannot guarantee the color you see accurately portrays the true color of the paint product. Before placing your order, we strongly recommend that you request a sample from Cardinal Paint, Tiger Coatings or Axalta Paint as needed.
price:
Shipping and taxes will be calculated at time of checkout.

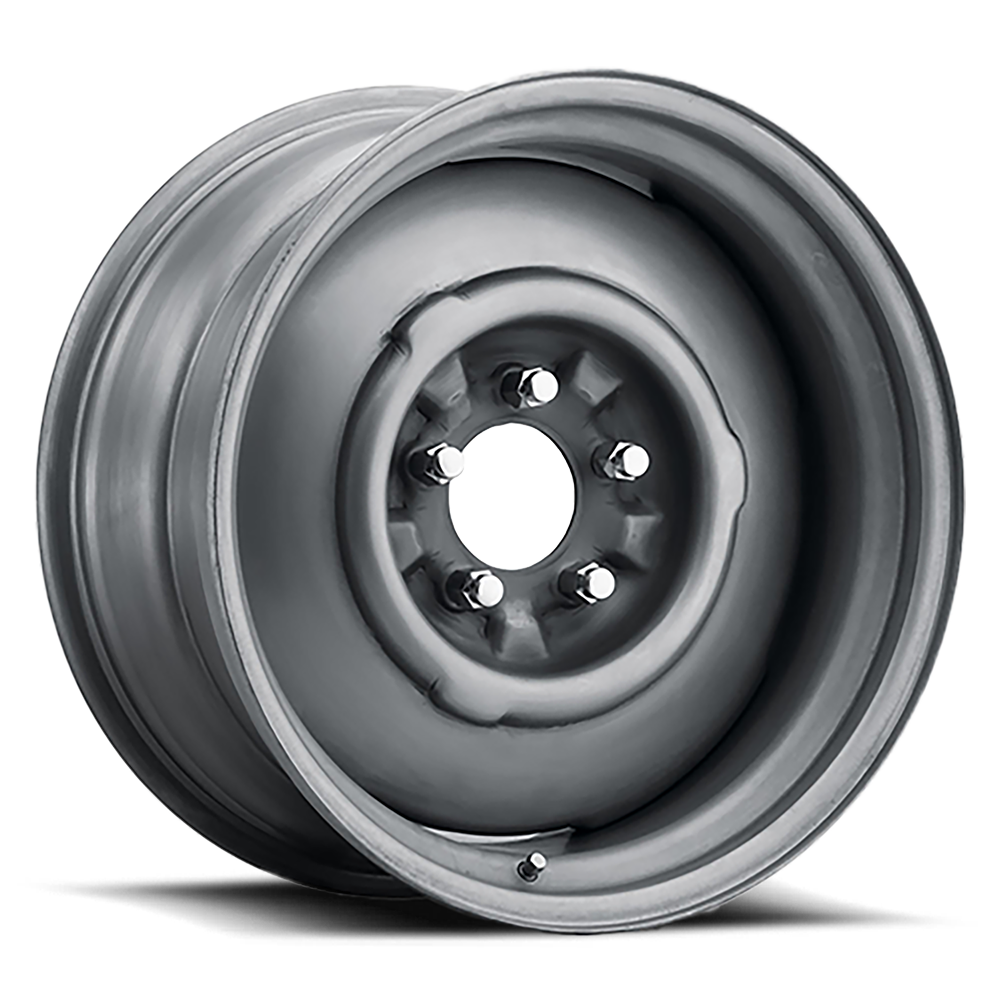

All steel, raw wheel. Image shown is 17x8. Note: 18" wheels DO NOT have windows as seen in the 17". Outside nubs for caps on 5-lug wheels measure 10 1/8", nubs on 6-lug wheels measure 11 5/8". Additional 6 & 8-lug options for this wheel style are available on our Truck tab. Image shown with custom black powder coat, trim ring, and hubcap, not included. Ability to add custom powder coat for $35/wheel once a part selection has been made. Lug nuts not included. Please check proper fitment before mounting.
available in sizes:
15x5, 15x6, 15x7, 15x8, 15x10, 17x7, 17x8, 17x9, 17x10, 17x12, 18x7, 18x8, 18x9, 18x10, 18x12
We only ship to the 48 contiguous United States.
-
Accessories
Accessories for this wheel
_7292_8670.jpg)
_5427.jpg)
_8110.jpg)
_5380.jpg)
-
Finishes
Additional Finishes
Technical Specifications
| Part Number | Size | BP 1 | BP 2 | BP 3 | Offset | Backspacing | Bore | Load | Weight | Finish | Accessories |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 657-5512 | 15x5 | 5x4.5 | 0 | 3 | 73.15 | 1400 | 24 | RAW | View All | ||
| 657-5534 | 15x5 | 5x4.75 | 0 | 3.25 | 73.15 | 1400 | 24 | RAW | View All | ||
| 657-5550 | 15x5 | 5x5 | 0 | 3.25 | 73.15 | 1400 | 24 | RAW | View All | ||
| 657-5555 | 15x5 | 5X5.5 | 0 | 3 | 108.71 | 1500 | 24 | RAW | View All | ||
| 657-5560 | 15x5 | 6X5.5 | -6 | 3.25 | 108.7 | 1500 | 20 | RAW | View All | ||
| 657-5612 | 15x6 | 5x4.5 | 6 | 3.75 | 73.15 | 1500 | 25 | RAW | View All | ||
| 657-5634 | 15x6 | 5x4.75 | 6 | 3.75 | 73.15 | 1500 | 25 | RAW | View All | ||
| 657-5650 | 15x6 | 5x5 | 6 | 3.75 | 73.15 | 1500 | 25 | RAW | View All | ||
| 657-5655 | 15x6 | 5X5.5 | 6 | 3.75 | 108.71 | 1500 | 25 | RAW | View All | ||
| 657-5660 | 15x6 | 6X5.5 | 6 | 3.75 | 108.7 | 1500 | 22 | RAW | View All | ||
| 657-5712 | 15x7 | 5x4.5 | 6 | 4.25 | 73.15 | 1500 | 26 | RAW | View All | ||
| 657-5734 | 15x7 | 5x4.75 | 6 | 4.25 | 73.15 | 1500 | 26 | RAW | View All | ||
| 657-5750 | 15x7 | 5x5 | 6 | 4.25 | 73.15 | 1500 | 26 | RAW | View All | ||
| 657-5755 | 15x7 | 5X5.5 | 6 | 4.25 | 108.71 | 1500 | 26 | RAW | View All | ||
| 657-5760 | 15x7 | 6X5.5 | 6 | 4.25 | 108.7 | 1500 | 26 | RAW | View All | ||
| 657-5812 | 15x8 | 5x4.5 | -6 | 4.25 | 73.15 | 1500 | 28 | RAW | View All | ||
| 657-5834 | 15x8 | 5x4.75 | -6 | 4.25 | 73.15 | 1500 | 28 | RAW | View All | ||
| 657-5850 | 15x8 | 5x5 | -6 | 4.25 | 73.15 | 1500 | 28 | RAW | View All | ||
| 657-5855 | 15x8 | 5X5.5 | -6 | 4.25 | 108.71 | 1500 | 28 | RAW | View All | ||
| 657-5860 | 15x8 | 6X5.5 | -6 | 4.25 | 108.7 | 1500 | 28 | RAW | View All | ||
| 657-5012 | 15x10 | 5x4.5 | -25 | 4.5 | 73.15 | 1500 | 34 | RAW | View All | ||
| 657-5034 | 15x10 | 5x4.75 | -25 | 4.5 | 73.15 | 1500 | 34 | RAW | View All | ||
| 657-5050 | 15x10 | 5x5 | -25 | 4.5 | 73.15 | 1500 | 34 | RAW | View All | ||
| 657-5055 | 15x10 | 5X5.5 | -25 | 4.5 | 108.71 | 1500 | 34 | RAW | View All | ||
| 657-5060 | 15x10 | 6X5.5 | -25 | 4 | 108.7 | 1500 | 34 | RAW | View All |
| Part Number | Size | BP 1 | BP 2 | BP 3 | Offset | Backspacing | Bore | Load | Weight | Finish | Accessories |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 657-8734 | 17x7 | 5X4.75 | 16 | 4.625 | 73.15 | 1700 | 38 | RAW | View All | ||
| 657-8834 | 17x8 | 5X4.75 | 6 | 4.75 | 73.15 | 1700 | 39 | RAW | View All | ||
| 657-8934 | 17x9 | 5X4.75 | 19 | 5.75 | 73.15 | 1700 | 40 | RAW | View All | ||
| 657-8034 | 17x10 | 5X4.75 | 25 | 6.5 | 73.15 | 1700 | 42 | RAW | View All | ||
| 657-8234 | 17x12 | 5X4.75 | 0 | 7.5 | 73.15 | 1700 | 44 | RAW | View All |
| Part Number | Size | BP 1 | BP 2 | BP 3 | Offset | Backspacing | Bore | Load | Weight | Finish | Accessories |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 657-9712 | 18x7 | 5X4.5 | 6 | 4.25 | 81.03 | 1700 | 40 | RAW | View All | ||
| 657-9734 | 18x7 | 5X4.75 | 6 | 4.25 | 73.15 | 1700 | 40 | RAW | View All | ||
| 657-9750 | 18x7 | 5X5 | 6 | 4.25 | 81.03 | 1700 | 40 | RAW | View All | ||
| 657-9755 | 18x7 | 5X5.5 | 6 | 4.25 | 108.71 | 1700 | 40 | RAW | View All | ||
| 657-9760 | 18x7 | 6X5.5 | 6 | 4.25 | 108.71 | 1700 | 40 | RAW | View All | ||
| 657-9812 | 18x8 | 5X4.5 | 0 | 4.5 | 73.15 | 1700 | 42 | RAW | View All | ||
| 657-9834 | 18x8 | 5X4.75 | 0 | 4.5 | 73.15 | 1700 | 42 | RAW | View All | ||
| 657-9850 | 18x8 | 5X5 | 0 | 4.5 | 81.03 | 1700 | 42 | RAW | View All | ||
| 657-9855 | 18x8 | 5X5.5 | 0 | 4.5 | 108.71 | 1700 | 42 | RAW | View All | ||
| 657-9860 | 18x8 | 6X5.5 | 0 | 4.5 | 108.71 | 1700 | 42 | RAW | View All | ||
| 657-9912 | 18x9 | 5X4.5 | 0 | 5 | 81.03 | 1700 | 44 | RAW | View All | ||
| 657-9934 | 18x9 | 5X4.75 | 0 | 5 | 73.15 | 1700 | 44 | RAW | View All | ||
| 657-9950 | 18x9 | 5X5 | 0 | 5 | 81.03 | 1700 | 44 | RAW | View All | ||
| 657-9955 | 18x9 | 5X5.5 | 0 | 5 | 108.71 | 1700 | 44 | RAW | View All | ||
| 657-9960 | 18x9 | 6X5.5 | 0 | 5 | 108.71 | 1700 | 44 | RAW | View All | ||
| 657-9012 | 18x10 | 5X4.5 | 44 | 7.25 | 73.15 | 1700 | 46 | RAW | View All | ||
| 657-9034 | 18x10 | 5X4.75 | 44 | 7.25 | 81.03 | 1700 | 46 | RAW | View All | ||
| 657-9050 | 18x10 | 5X5 | 44 | 7.25 | 81.03 | 1700 | 46 | RAW | View All | ||
| 657-9055 | 18x10 | 5X5.5 | 44 | 7.25 | 108.71 | 1700 | 46 | RAW | View All | ||
| 657-9060 | 18x10 | 6X5.5 | 44 | 7.25 | 108.71 | 1700 | 46 | RAW | View All | ||
| 657-9212 | 18x12 | 5X4.5 | 25 | 7.5 | 81.03 | 1700 | 48 | RAW | View All | ||
| 657-9234 | 18x12 | 5X4.75 | 25 | 7.5 | 81.03 | 1700 | 48 | RAW | View All | ||
| 657-9250 | 18x12 | 5X5 | 25 | 7.5 | 81.03 | 1700 | 48 | RAW | View All | ||
| 657-9255 | 18x12 | 5X5.5 | 25 | 7.5 | 108.71 | 1700 | 48 | RAW | View All | ||
| 657-9260 | 18x12 | 6X5.5 | 25 | 7.5 | 108.71 | 1700 | 48 | RAW | View All |
